Lightweight and Powered by Your Pressure Washer

  • Easy

    One-person setup and use.

    No complex controls.

    Just connect your pressure washer and go.

  • Fast

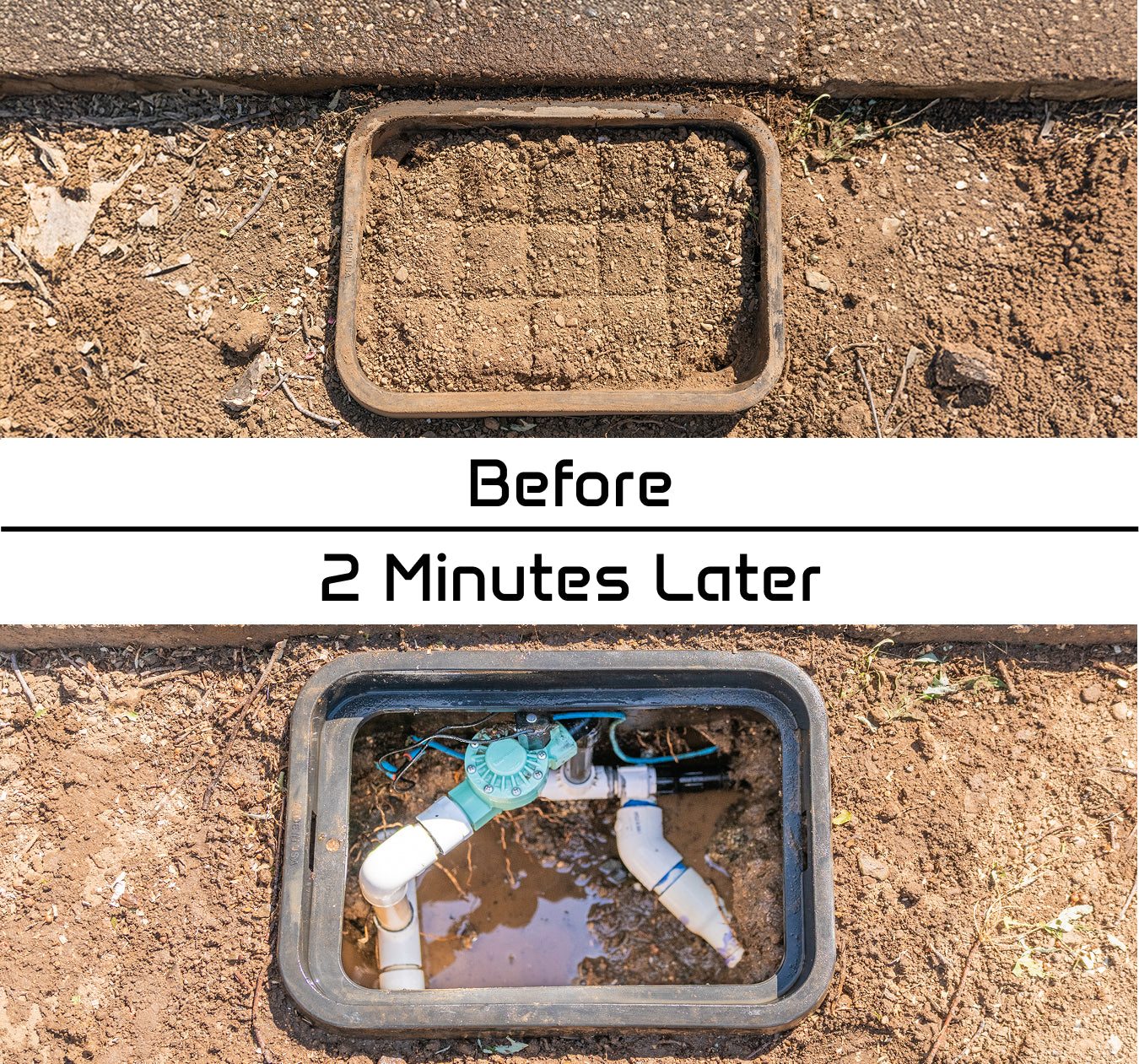

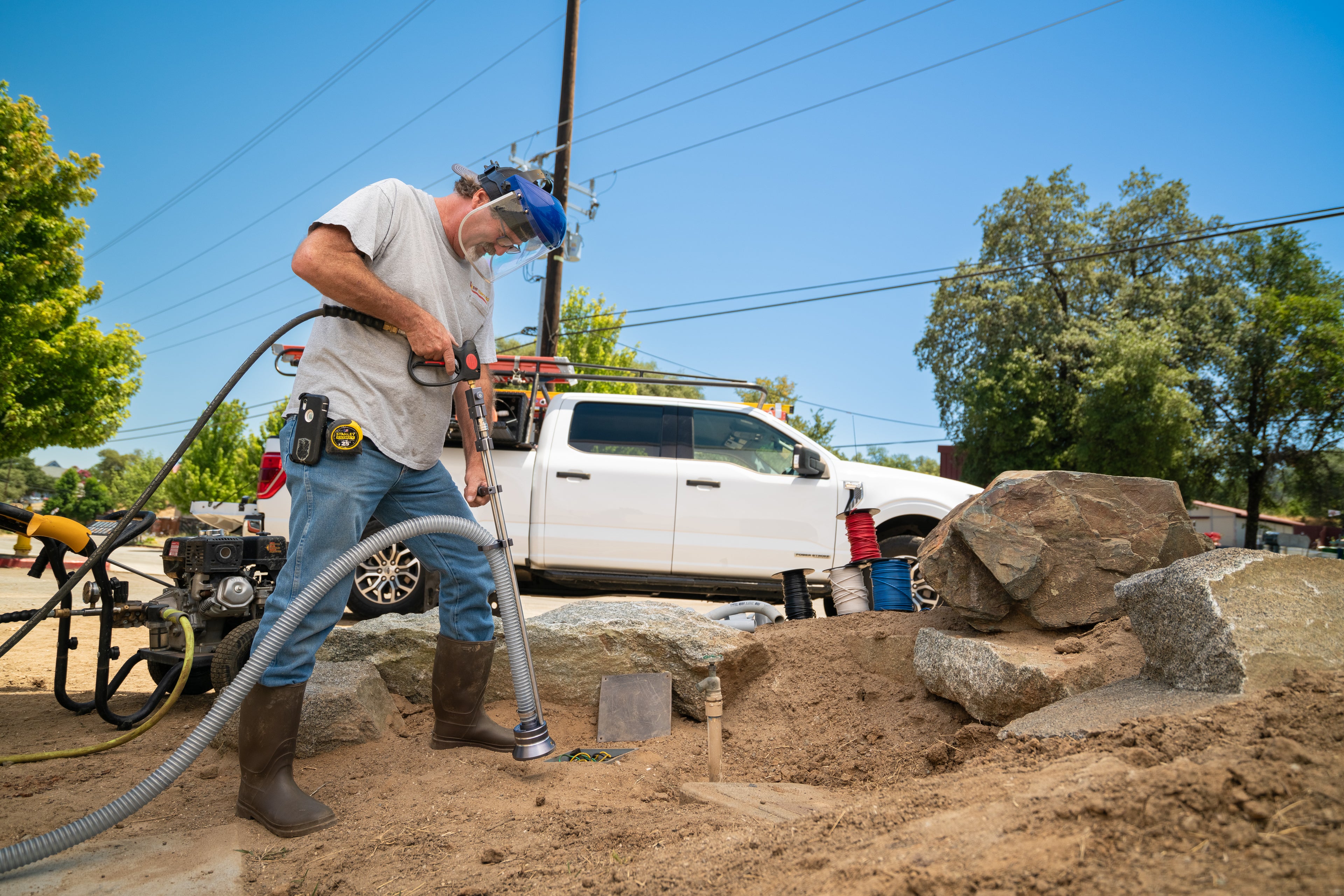

    Quickly expose pipes, roots, or utilities without shovels or picks.

  • Non-Destructive

    Excavate without damaging what's below.

    Safely clear around cables, irrigation, or fragile infrastructure.

"The HydroExVac saved us from spending the whole morning digging with a shovel to find this broken pipe. This thing is badass!"

Cole - Livingston Grading & Paving

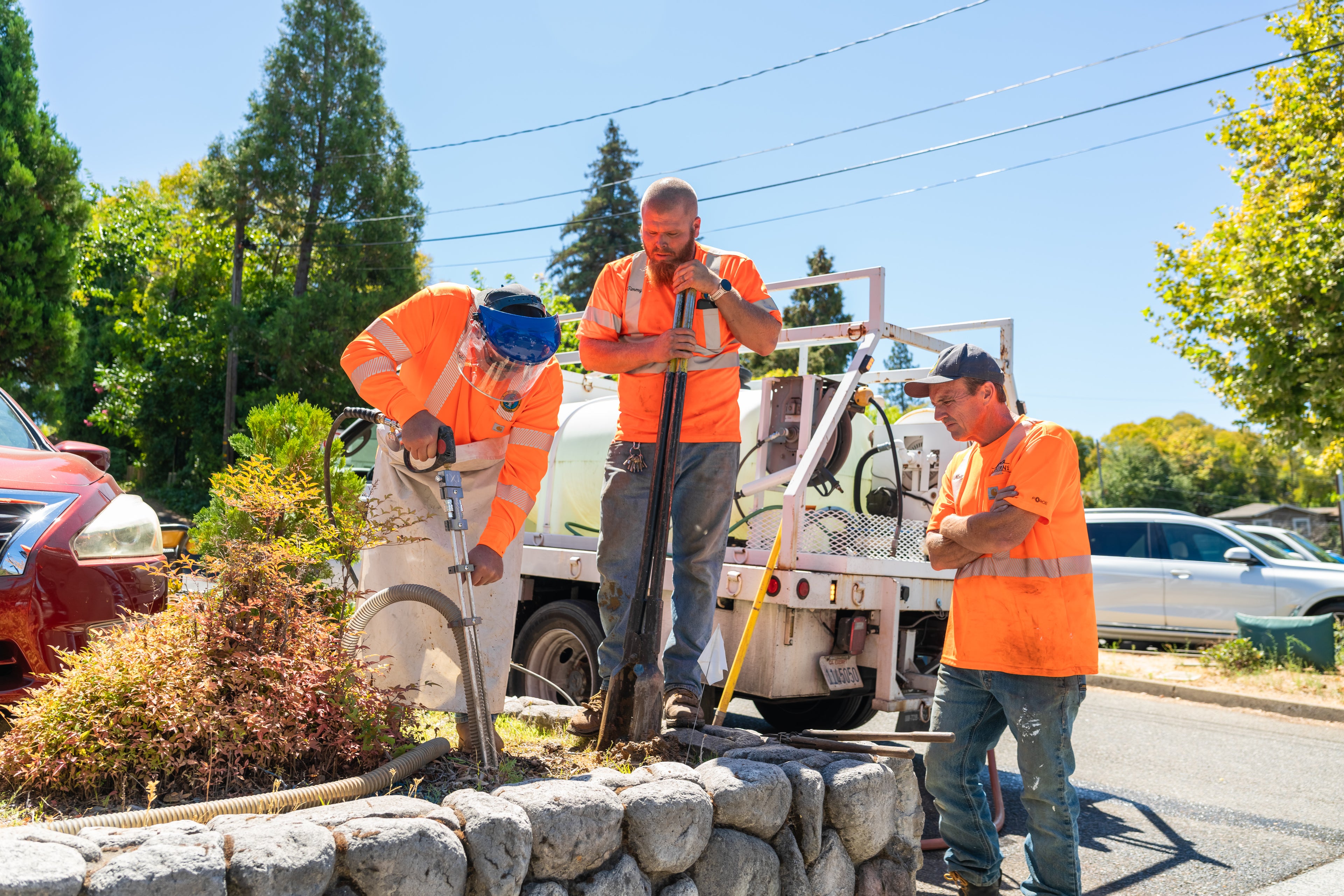

Use Cases

1 4

Non-Destructive

Safely exposes buried utilities quickly without damage

High-Performance

60 GPM suction with 12 feet of lift achieved using a 4,000 PSI, 3.5 GPM pressure washer.

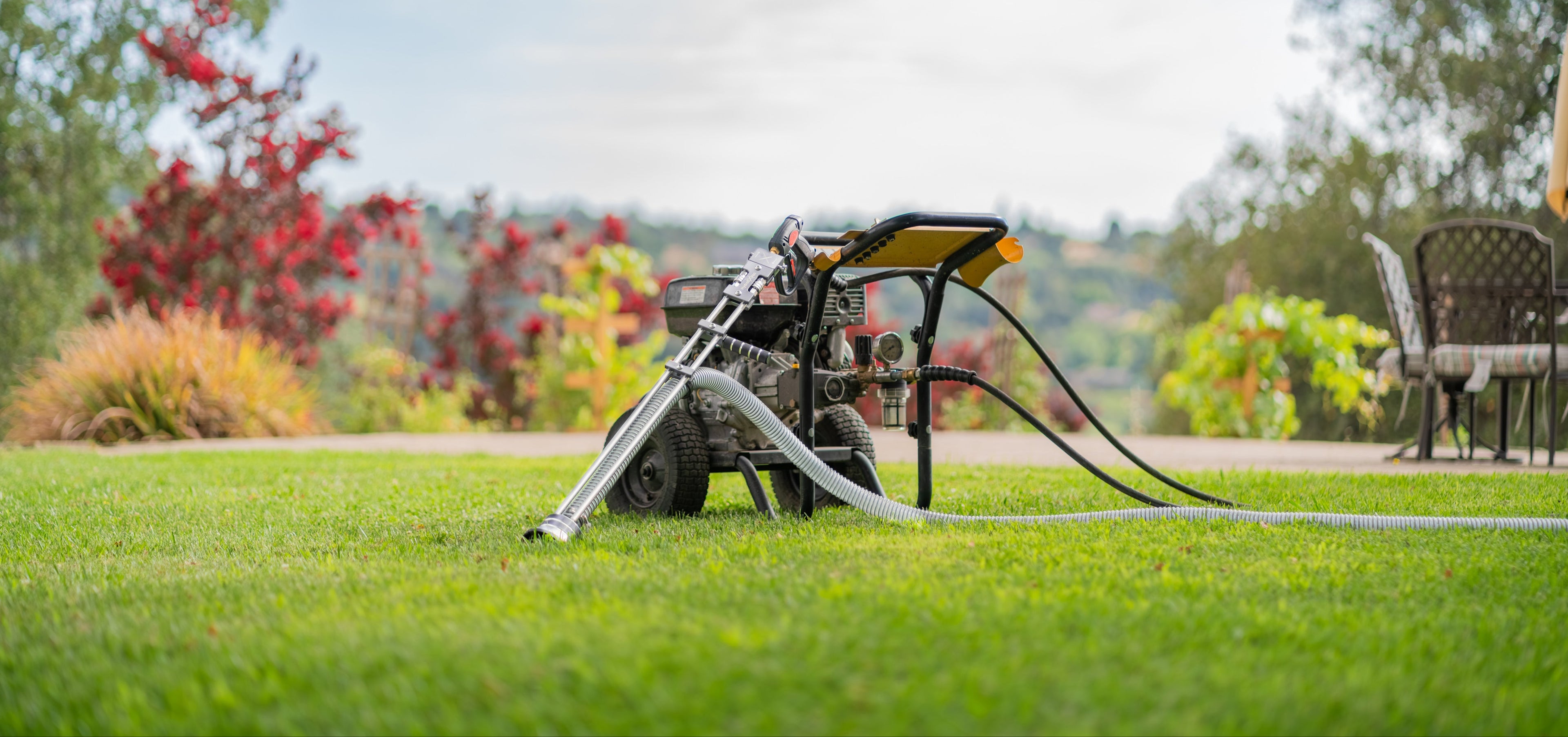

Portable

Lightweight and compact design for easy transport

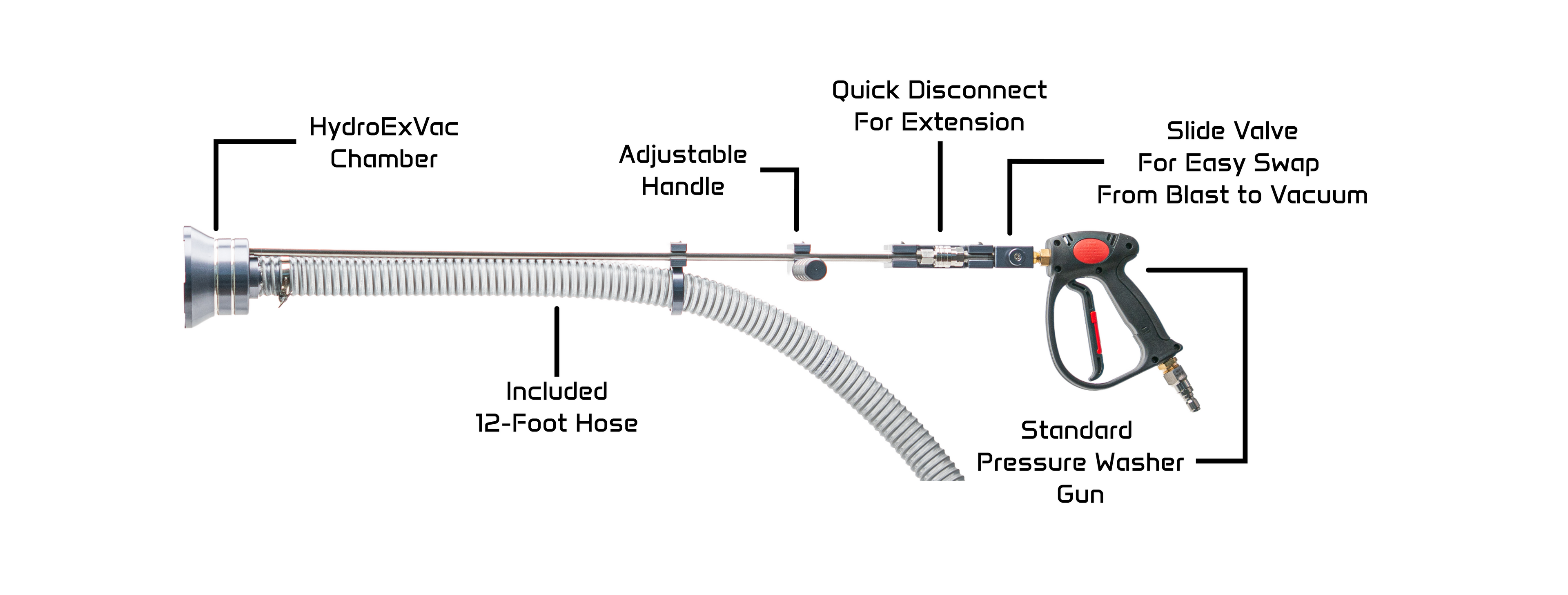

Specs and Features

Performance

  • Excavation/Vacuuming: 60 gpm and 12 feet of lift with a 4,000 psi, 3.5 gpm Pressure Washer achieved these specs
  • MAX Pressure: 350bar - 5000psi
  • MAX Flow Rater: 40L/min - 10.5GPM

Dimensions and Weight

  • Overall Length: 44 7/8 in
  • Overall Width: 8 in
  • Weight: 6.6 lbs

What's Included

  • 1 x HydroExVac PRO
  • 1 x 12.5 Foot Helix Suction Hose
  • 1 x Pressure Gauge
  • 1 x 3/16 Allen Key
  • 1 x 3/8 Drive Ratchet
  • 1 x 3/8 Drive Ratchet Extension
  • 1 x 14mm Socket
  • 6 x Extra O-Rings
  • 1 x Rubber Splash Guard
  • 2 x 1.236 mm Nozzles (preinstalled)
  • 2 x 0.977 mm Nozzles
  • 1 x Turbo Nozzle
  • 1 x 25 Degree Fan Tip Nozzle

Frequently Asked Questions

As long as your pressure washer meets these specs:

  • 3000 - 5000 PSI
  • 2.5+ GPM

The greater the PSI and GPM, the stronger the performance.

We include a pressure gauge so you can verify your pressure washer's PSI.

We include four nozzles with every HydroExVac.

  • 0.977mm Nozzle - For smaller pressure washers (3000 - 3500 PSI, 2.5-3.0 GPM)
  • 1.236mm Nozzle - For most pressure washers (3500 - 5000 PSI, 3.0+ GPM)
  • 25 Degree Fan Tip Nozzle - For cleaning surfaces and non digging purposes
  • Turbo Nozzle - For digging softer dirt when speed is more important than pinpoint accuracy

If your pressure washer is outside this range, contact us and we'll help you find the perfect fit.

The HydroExVac turns your pressure washer’s water flow into suction via venturi, so no separate vacuum is needed.

  • Two Tools in One: High pressure soil cutter + a powerful vaccum.
  • Time and Money Saving: In an emergency, like a broken pipe, there is nothing easier or faster to clear the area to repair your pipe.
  • Safe Utility Digging: Less risk than mechanical methods.
  • Precision Excavation: Remove only whats needed.
  • Built-To-Last: Professional grade materials to stand against your toughest jobs.
  • Low Maintenance: Easy to clean and simple nozzle swaps, that's it.

Yes. We offer a suction hose extension pack to extend your reach for deeper or more distant excavation.

There are a few different methods:

  • Attach your suction hose to a 55-gallon drum
  • Use a tank on a trailer
  • Connect to a filtration box
  • Collect container in the back of your truck
  • And many other options
